Inline High Shear Mixers

Single Stage Inline Homogenizer

Single Stage Inline homogenizer comprises of a single set of a rotor stator assembly having various configurations of stator heads based upon the application.

  • Up to 95 m/sTip speed
  • 15 – 200,000 L/hrThroughput range
  • 20+Rotor–stator designs
  • CIP / SIPModel available on request
Request a Quote Book a Machine Trial
Row of a dozen inline homogenizers with grey motors lined up on a workshop floor

This is the one-stage model in our inline homogenizer range; compare it with the two- and four-stage models there.

Performance

Key features

  • Can achieve tip speed of up to 95 m/s
  • Over twenty different rotor stator designs to choose from
  • Can be used in a single pass or a recirculating batch
  • Lower power consumption per cycle
  • Nil or low maintenance
  • CIP/SIP model available upon request
  • Conical shear tools available for extremely narrow particle size distribution
  • Can be force fed for high viscosity liquids
  • For the highest quality demands in the wet processing industry
  • Self pumping action, i.e., no auxiliary pump is required to pump the material
  • Throughputs from 15 to 200,000 liters/hr, therefore, achieves higher flow rates with even higher efficiency of mixing
  • Power transmission via direct coupling or belt-driven for high shear applications
  • Large selection of shaft sealing- single mechanical seal, complex double mechanical seal with thermo-syphon and stuffing box with impregnated gland sealing
  • Process parameter controls, i.e., heating or cooling jacket
  • Binary entrance for merging partial flows
Build & options

Construction and configuration

Sanitary & hazardous areas

The high shear mixer is designed for sanitary applications and can be configured to meet compliance with FDA norms. It can also be supplied with ATEX approved motors or IEC-60079 flameproof/explosion-proof motors with certification for hazardous applications.

Inlet and outlet

Can be designed as per the specific requirement (flanged, DIN connections, Tri-clamp, ASA, etc.).

Control panel

ATEX approved control panels can also be supplied with our high shear mixers.

Motors

TEFC (totally enclosed fan cooled), explosion-proof / ATEX certified motors can be supplied as standard to be used with frequency inverters or starters. Washdown motors and stainless motors can also be supplied.

Rotor / stator

Can be supplied extra with each high shear mixer (except the 4-stage model) and can be used interchangeably as per the application.

Same family
Cutaway animation of an inline homogenizer showing particles being sheared in the rotor-stator

Inline Homogenizer

Wahal inline homogenizers: 1, 2 or 4 rotor-stator stages, self-pumping, 15–200,000 L/hr, 20+ stator designs, sanitary and ATEX options. Trials available.

View machine
Cutaway of a Wahal two-stage inline homogenizer showing the rotor-stator head, with blue motor on a base

Two Stage Inline Homogenizer

Two stage inline homogenizer with two rotor-stator sets for finer emulsions and dispersions. Tip speed up to 95 m/s, CIP/SIP versions available.

View machine

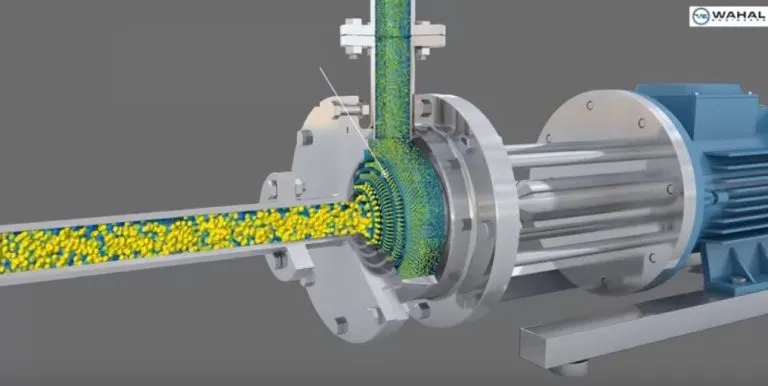

Cutaway animation of an inline homogenizer with finely dispersed particles leaving through the outlet

Four Stage Inline Homogenizer

Explore the Four Stage Inline High Shear Homogeniser designed for optimal mixing and particle size distribution in various applications.

View machine
Row of a dozen inline homogenizers with grey motors lined up on a workshop floor

Inline High Shear Mixers

Inline high shear mixers for continuous processing: single, two and four stage inline homogenizers and powder induction mixers. Hygienic and ATEX options.

View machine

Not sure which rotor–stator head suits your product?

Tell us about your product and target result, or run a trial on a Wahal machine before you decide.

Book a Machine Trial Request a Quote
