Revolutionizing powder induction and dispersion

Solid Liquid Powder Induction Mixer

What sets Wahal homogenizers apart is the intricately machined rotor-stator parts. The precise engineering of these parts ensures that powders are rapidly and uniformly wetted, creating homogenous slurries without lumps or inconsistencies.

  • 3 feed optionsHopper, flexible hose, silo
  • LPM 10 – 200Model range
  • Up to 675 kg/minPowder induction (CaCO₃)
  • Lump-freeRapid, uniform wetting
Request a Quote Book a Machine Trial

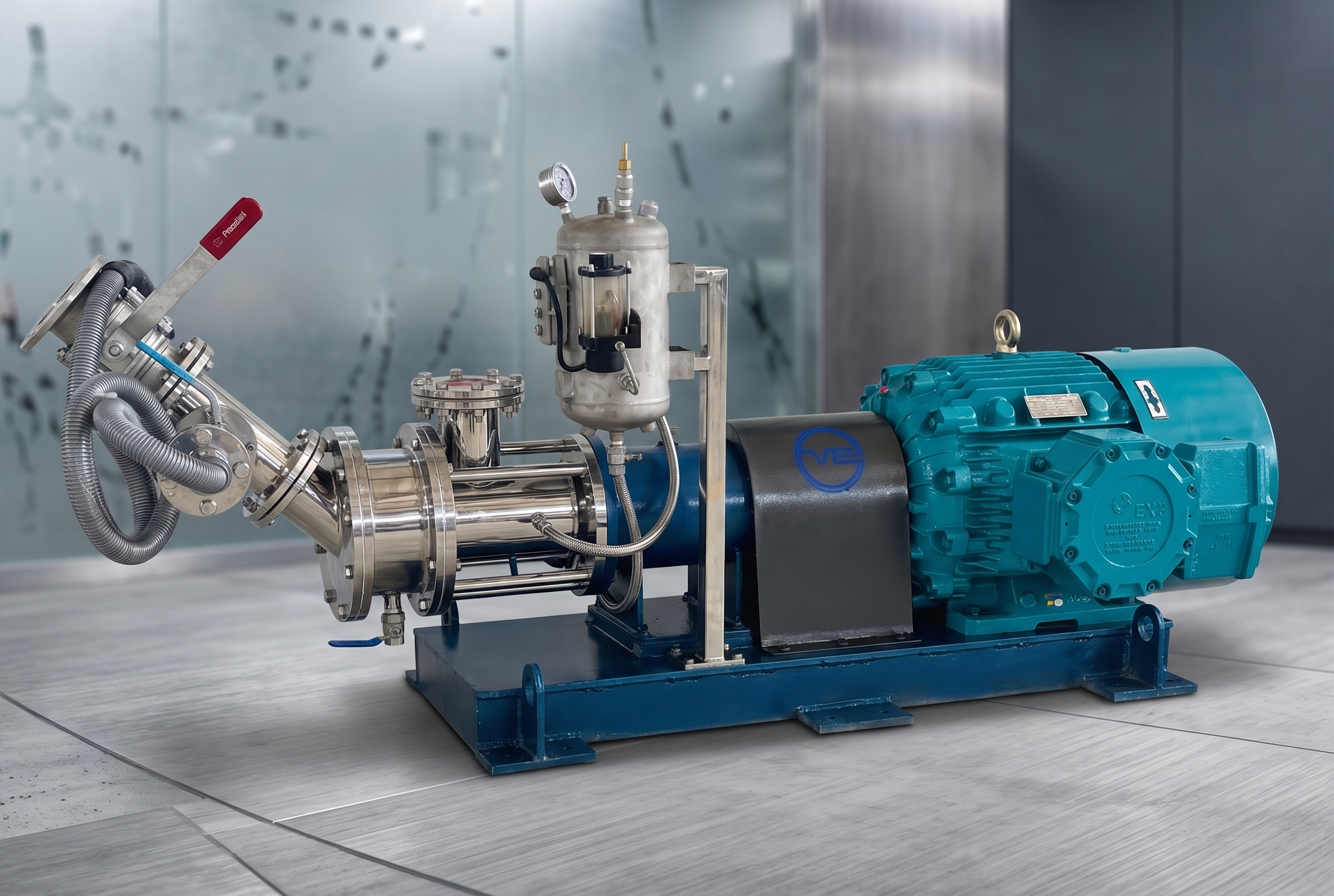

3D render of a solid-liquid powder induction mixer with teal motor, powder inlet hose and seal pot on a blue base

Customization for optimal performance

There are 3 types of powder induction options : Hopper, flexible hose and silo dosing.

Model Range & Specifications

Model Motor Power (HP) Powder Induction Rate (kg/min)*
LPM 10 10 HP 30-75
LPM 20 20 HP 75-125
LPM 30 30 HP 100-175
LPM 50 50 HP 150-275
LPM 75 75 HP 250-375
LPM 100 100 HP 350-475
LPM 150 150 HP 450-575
LPM 200 200 HP 550-675

*Powder induction rates listed are based on Calcium Carbonate (CaCO₃) as the reference material when added via a hopper.Actual induction rates will vary depending on the properties of the powder/solid being processed and the method of powder feeding used (jumbo bag, silo, flexible hose)

Applications

  • Fumed silica dispersion — difficult to wet due to extremely low bulk density and high surface area; a classic vacuum-induction use case
  • CMC (carboxymethyl cellulose) and Carbopol mixing — thickeners/rheology modifiers used across chemical formulations, prone to the same clumping issue as other hydrocolloids
  • Bentonite high shear mixing — both drilling fluids and industrial suspension applications
  • Battery manufacturing / electrode slurry production — carbon black, graphite, and binder powders dispersed into NMP or water-based slurry for lithium-ion battery electrodes.
Video

Continuous inline liquid powder dispersion

Same family

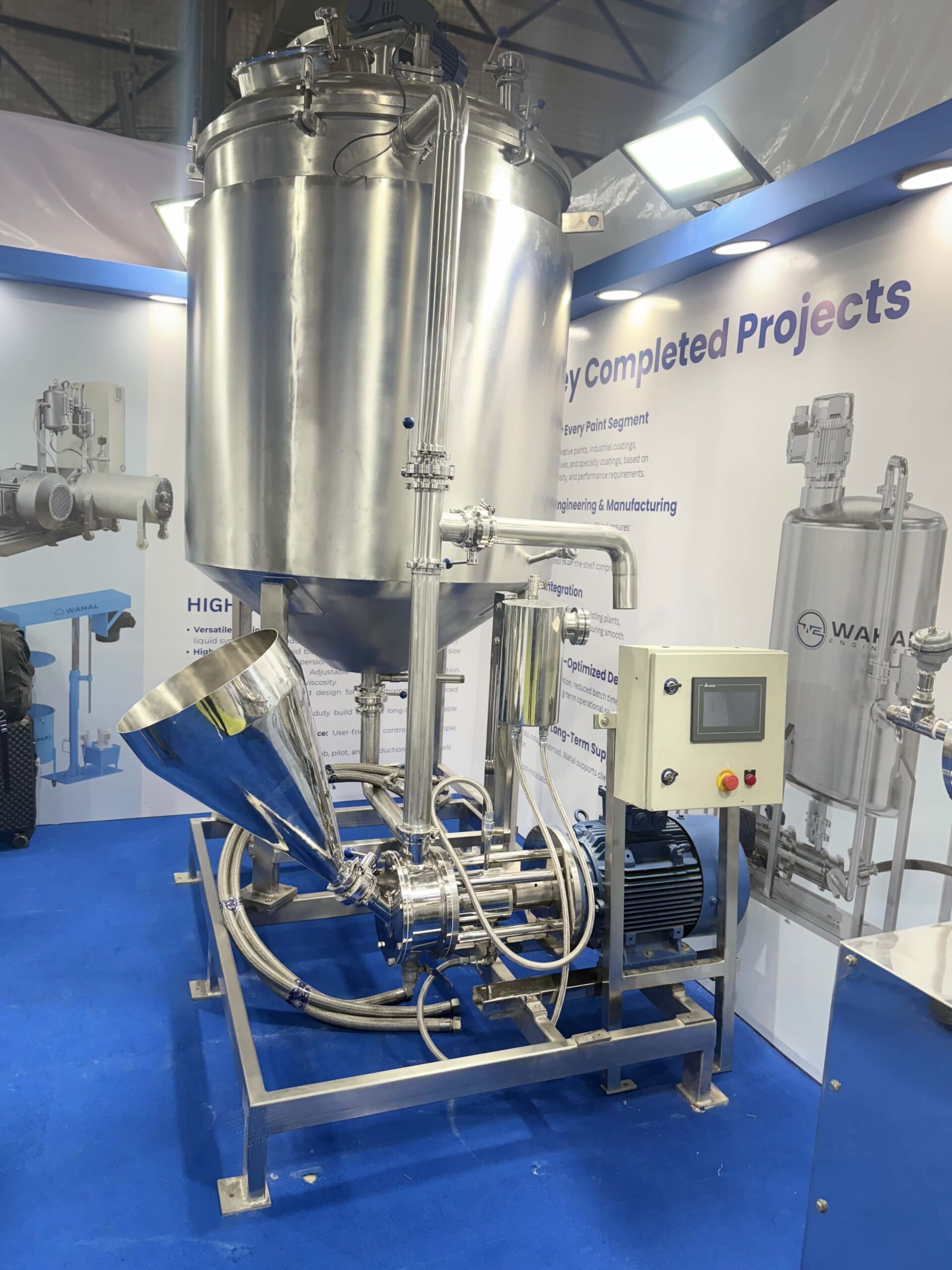

Wahal liquid powder mixer with angled feed hopper, vessel and control panel at an exhibition stand

Lpm in water based paints

Lpm in water based paints for dust-free solid liquid mixing. High shear rotor-stator design for powder wetting dispersion.

View machine
Wahal IBC tote mixer on a hydraulic lifting column above an IBC tank, 3D render

IBC Tote Mixers

Wahal IBC tank mixers and tote agitators for rapid mixing, blending, and homogenization in standard intermediate bulk containers.

View machine
Wahal process tanks piped to a grinding unit, diaphragm pump and inline mixer, 3D render

Wet Grinding Machine

Wet grinding machines from Wahal Engineers: modular bead mills and wet mills for fine and nano-size grinding and dispersion of inks, paints and more.

View machine

Want to see your powder inducted before you buy?

Send us your powder and liquid details for induction-rate data, or run a trial on a Wahal machine.
