Single Stage Inline homogenizer comprises of a single set of a rotor stator assembly having various configurations of stator heads based upon the application. The single-stage homogenizers have the following specs:

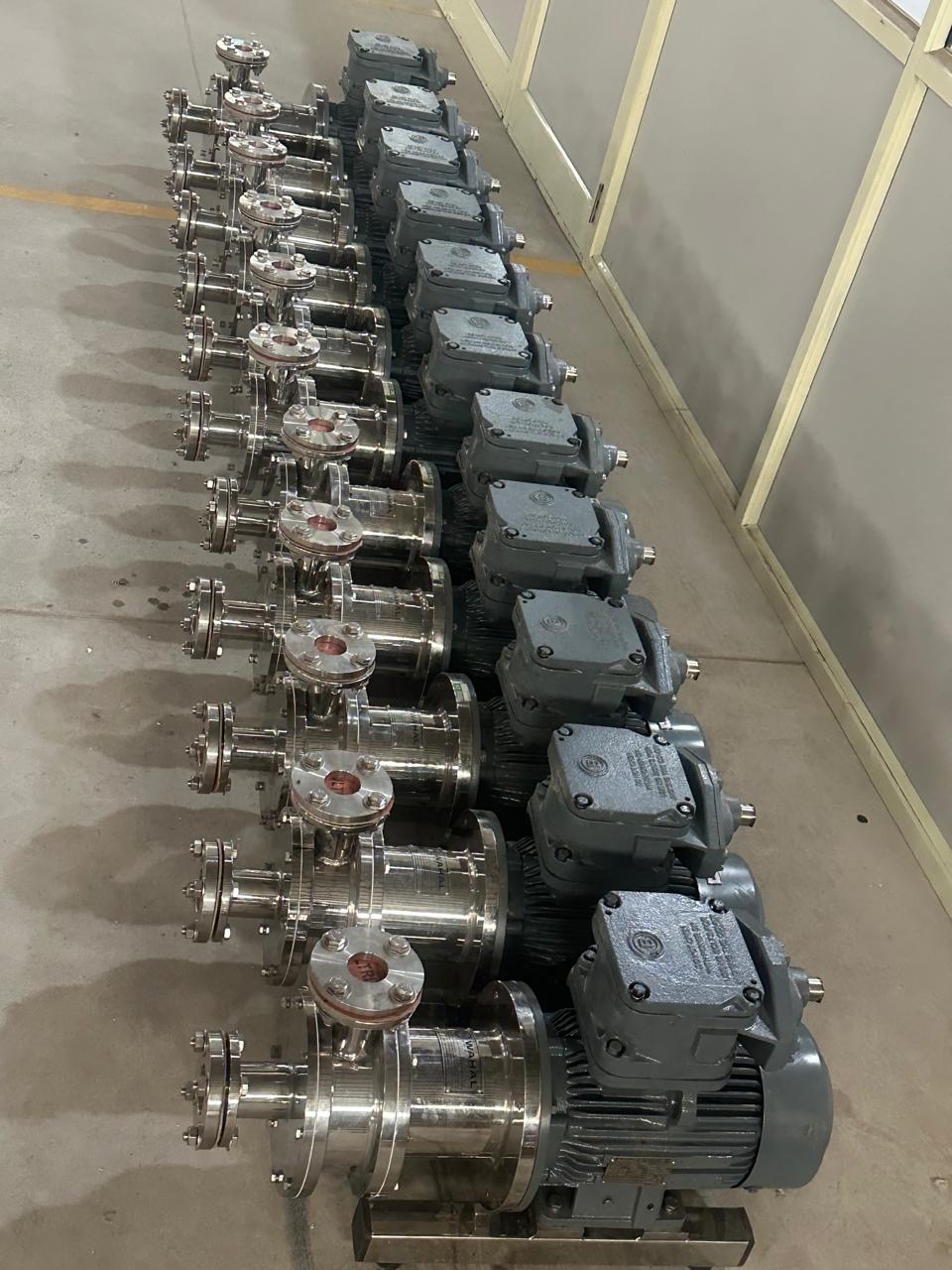

Single Stage Inline Homogenizer
- Can achieve tip speed of up to 95 m/s
- Over twenty different rotor stator designs to chose from
- Self-pumping
- Can be used in a single pass or a recirculating batch
- Lower power consumption per cycle
- Nil or low maintenance
- CIP/SIP model available upon request
- Conical shear tools available for extremely narrow particle size distribution
- Can be force fed for high viscosity liquids
- Available with various configurations of sealing like single mechanical seal, double mechanical seal with thermo-syphon lubrication and gland sealing
- For the highest quality demands in the wet processing industry
- Self pumping action, i.e., no auxiliary pump is required to pump the material
- Throughputs from 15 to 200,000 liters/hr, therefore, achieves higher flow rates with even higher efficiency of mixing
- Power transmission via direct coupling or belt-driven for high shear applications
- Large selection of shaft sealing- single mechanical seal, complex double mechanical seal with thermo-syphon and stuffing box with impregnated gland sealing
- Process parameter controls, i.e., heating or cooling jacket
- Binary entrance for merging partial flows
- The high shear mixer is designed for sanitary applications and can be configured to meet compliance with FDA norms. Our high shear mixers can also be supplied with ATEX approved motors or IEC -60079 Flameproof/explosion-proof motors with certification for hazardous applications.
- Inlet and Outlet: Can be designed as per the specific requirement ( Flanged, DIN connections, Tri-clamp, ASA, etc. )
- Control panel: ATEX approved control panels can also be supplied with our high shear mixers.
- Motors: TEFC ( Totally enclosed fan cool ), Explosion-proof / ATEX certified motors can be supplied as standard to be used with frequency inverters or starters. Washdown motors and stainless motors can also be supplied.
- Rotor/ stator: Can be supplied extra with each high shear mixer ( Expect the 4 stage model ) and can be used interchangeably as per the application.
