Model chart
| Model | Chamber Volume | Motor Power | Batch Size (per 8-hr shift)* |
|---|---|---|---|
| WBM 0.6 | 0.6 L | 2 HP | 0–10 Liters |
| WBM 1.4 | 1.4 L | 3 HP | 0–50 Liters |
| WBM 7.5 | 7.5 L | 10 HP | 20–100 Liters |
| WBM 17.5 | 17.5 L | 20 HP | 100–500 Liters |
| WBM 32.5 | 32.5 L | 30 HP | 500–1,000 Liters |
| WBM 60 | 60 L | 40 HP | 1,000–2,000 Liters |
| WBM 100 | 100 L | 75 HP | 2,000–5,000 Liters |
| WBM 200 | 200 L | 125 HP | 5,000–10,000 Liters |
| WBM 300 | 300 L | 200 HP | 10,000–20000 Liters |
Batch sizes are based on an 8-hour work shift and are subject to product viscosity and initial and final particle size requirements.
Materials of construction: Bead Mills for pigment grinding are also available, selected based on process composition and product compatibility
Compliance/configuration options: Explosion-proof ATEX and NEMA models and GMP-compliant models (for pharmaceutical applications) are available.
Wahal Engineers is leading Bead Mills for pigment grinding manufacturer and exporter.

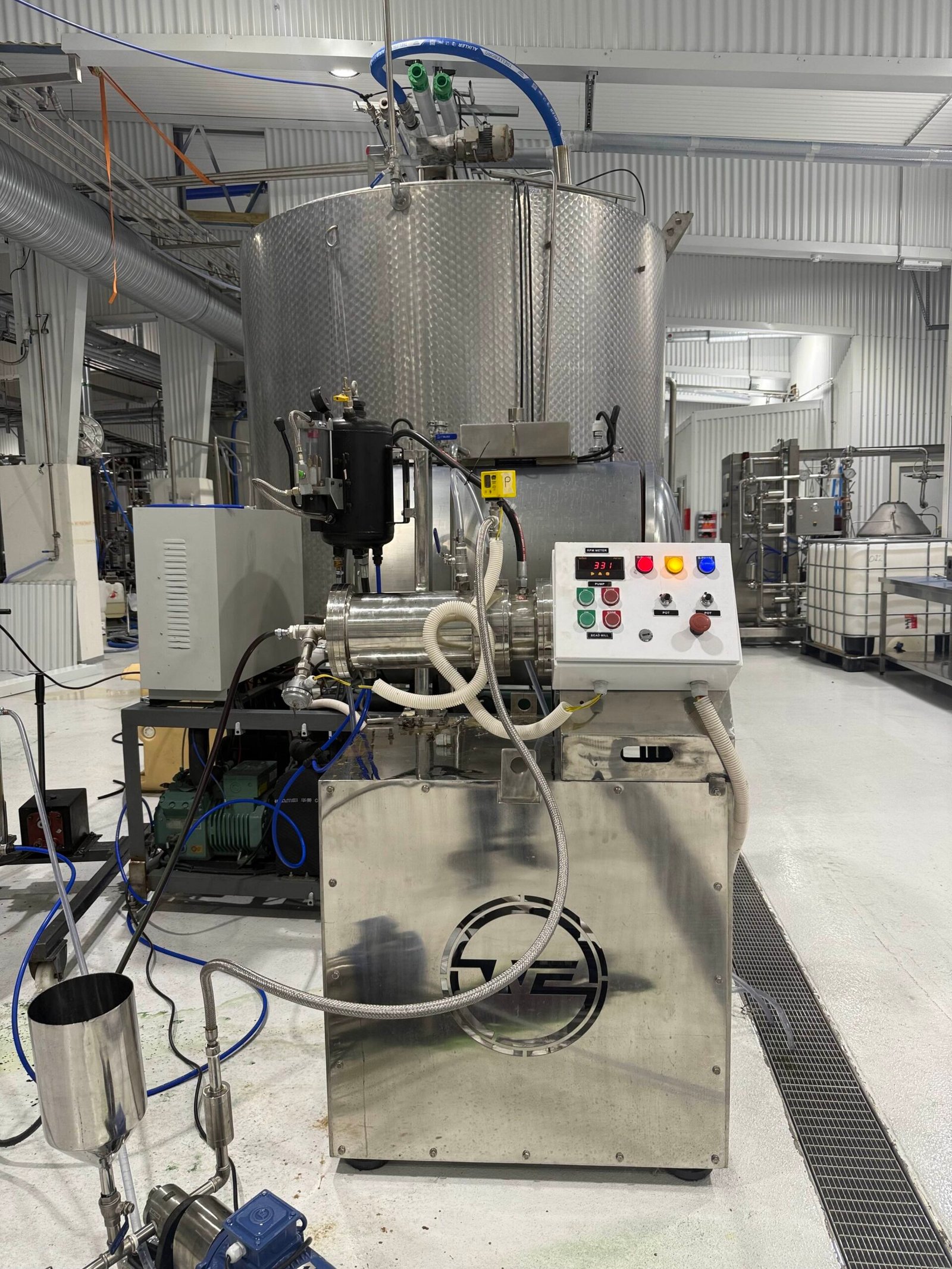

- Bead mills for pigment grinding is a specially designed modular wet grinding / dispersion mill for nano particle size reduction.
- Thermal protection for thermo sensitive products.
- Special centrifugal separation system ensuring high flow rates while achieving an intensive degree of grinding.
- Double mechanical seal cooling mechanism system for precision temperature control compliance with API Plan 53A
- Results in highly efficient micro grinding of even tough materials.
- Particle size up to one micron or 50 nm to 500 nm can be achieved.
- Designed for water based and solvent based slurries.
- Explosionproof control panels
